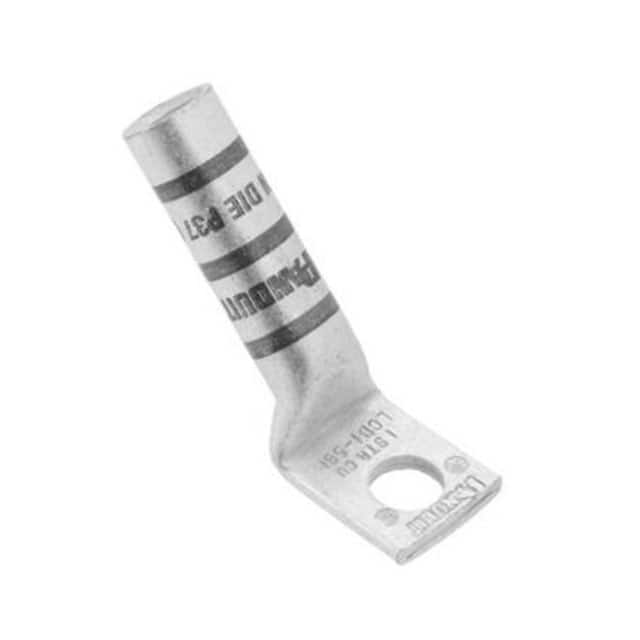

![Panduit lugs [LCB4-14H-L], PAC360](http://nguyenxuong.com/cdn/shop/products/MFG_LCB4-14H-L_640x640.jpg?v=1597681777)
Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCB4-14H-L
One-hole, long barrel lug, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole, 45° angle tongue.
| Copper Conductor Size (AWG) | #4 |
| Copper Conductor Size (kcmil) | 42 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.05 |
| Barrel Length (mm) | 26.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Angle | 45° |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.63 |
| Overall Length (mm) | 41.4 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
| Burndy Die Index Number | 8 |
| Wire Strip Length (In.) | 1.13 |
| Wire Strip Length (mm) | 28.6 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel, NEBS level 3. |
