Panduit lugs [LCB4/0-12-X], PAC362

Name: Panduit lugs [LCB4/0-12-X], PAC362
Brand: Panduit
SKU: PAC362
Price: 194600.0 VND
Availability: InStock

by Panduit

194.600₫

(Giá chưa VAT).

Mã kho: PAC362

Mã nhà sản xuất: LCB4/0-12-X

Đơn vị tính: PC

Quy cách đóng gói: 10

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCB4/0-12-X

MÔ TẢ SẢN PHẨM

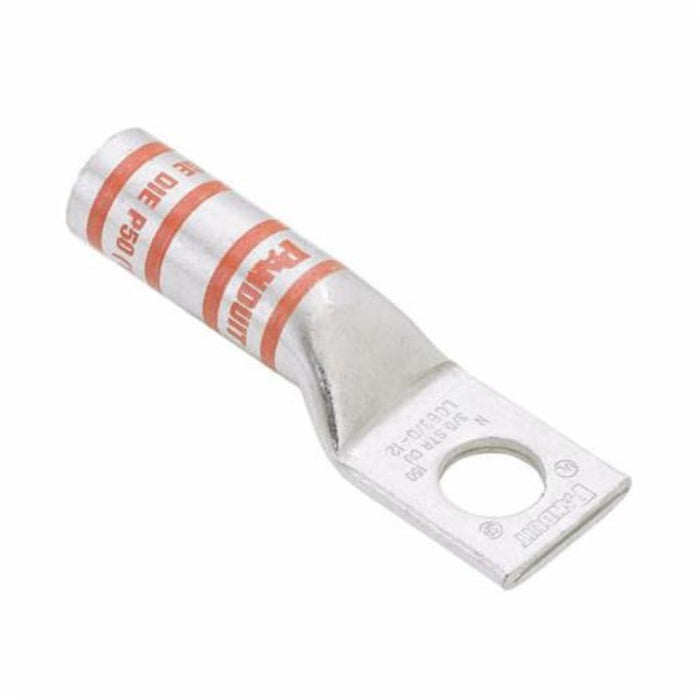

The LCB4/0-12-X Tin-Plated Copper Compression Connector Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and pe

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	0.57
Inside Diameter (mm)	14.47
Outer Diameter (In.)	0.71
Outer Diameter (mm)	18.03
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Lug Type	1 Stud Hole Lug
Base Material	Copper
Copper Code Conductor Size (AWG)	4/0
Sub Brand	Pan-Lug™
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Barrel Type	Long Barrel without Inspection Window
Barrel Length (In.)	1.56
Barrel Length (mm)	39.6
Tongue Type	Standard
Tongue Width (In.)	1.06
Tongue Width (mm)	26.9
Tongue Angle	Straight
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.6
Overall Length (In.)	3.22
Overall Length (mm)	81.8
Finish/Coating	Tin-Plated
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	Purple
Panduit Die Index Number	P54
Burndy Die Index Number	15
T & B Die Index Number	15
Wire Strip Length (In.)	1-5/8
Wire Strip Length (mm)	41.2
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
