Mechanical & Compression Lugs & Splices > Mechanical & Compression Lugs & Splices

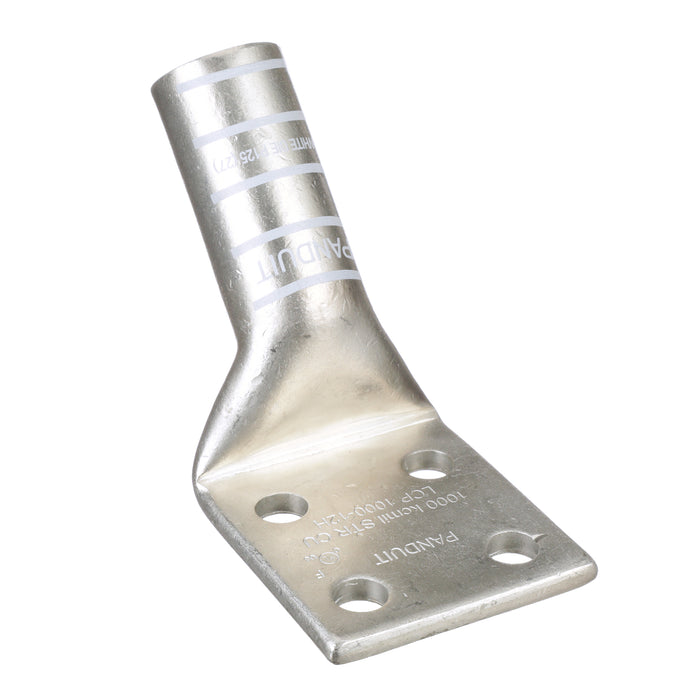

Panduit lugs [LCB1250-34H-3], PAD416

by Panduit
2.576.100₫
(Giá chưa VAT).
Mã kho: PAD416

Mã nhà sản xuất: LCB1250-34H-3

Đơn vị tính: KT

Quy cách đóng gói: 1

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCB1250-34H-3

MÔ TẢ SẢN PHẨM

Copper Compression Lug, 1 Hole, 1250 kcmil, Long Barrel, 3/4 (19,1mm) Stud, 45° Bend

_THÔNG SỐ KỸ THUẬT:

Product Type Tin-Plated Copper Compression Connectors-Lug
Lug Type 1 Stud Hole Lug
Sub Brand NA
Stud Hole Size (In.) 0.75
Stud Hole Size (mm) 19.05
Barrel Type Long Barrel without Inspection Window
Barrel Length (In.) 3.32
Barrel Length (mm) 84
Tongue Type Standard
Tongue Width (In.) 2.48
Tongue Width (mm) 62.992
Tongue Angle 45°
Tongue Thickness (In.) 0.37
Tongue Thickness (mm) 9.398
Overall Length (In.) 5.47
Overall Length (mm) 138.938
Finish/Coating Tin-Plated
Standards Met c UL us Listed , 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV) 35
Color Code Yellow
Panduit Die Index Number P140
Burndy Die Index Number 29
T & B Die Index Number 140
Wire Strip Length (In.) 3-3/8
Wire Strip Length (mm) 85.725
