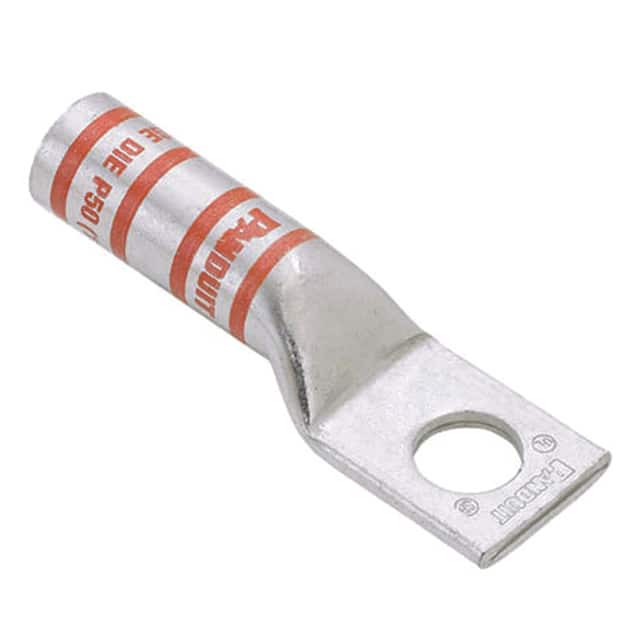

![Panduit lugs [LCB1/0-56-X], PAC318](http://nguyenxuong.com/cdn/shop/products/MFG_LCB1_5E0-38-X_f9fa8d3b-6d13-480f-a567-a3c17d9c9d09_640x640.jpg?v=1597681764)
Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCB1/0-56-X
One-hole, long barrel lug, 1/0 AWG wire, 5/16 stud hole.
| Copper Conductor Size (AWG) | 1/0 |
| Copper Conductor Size (kcmil) | 106 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 2.61 |
| Overall Length (mm) | 66.3 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
| Burndy Die Index Number | 12 |
| Wire Strip Length (In.) | 1.5 |
| Wire Strip Length (mm) | 38.1 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel, NEBS level 3. |
