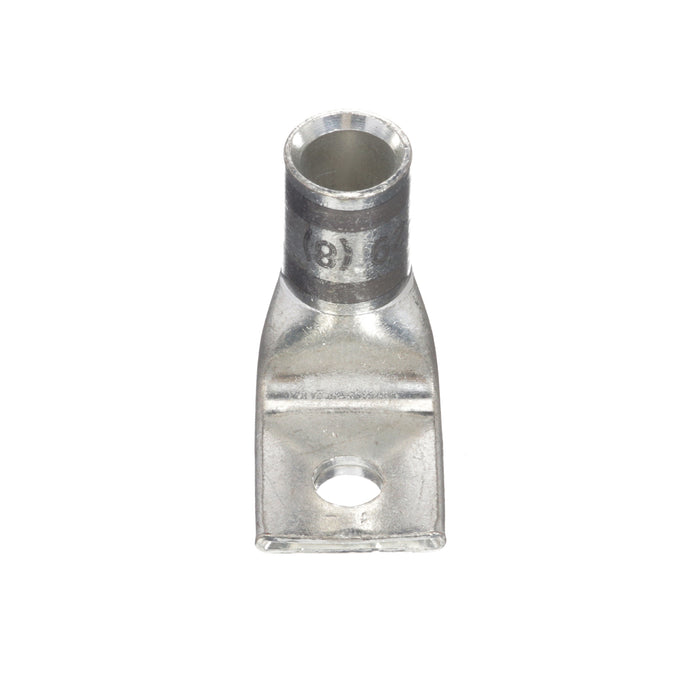

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAX4-10F-L
One-hole, flex lug, #4 AWG wire, #10 stud hole., 90° angle tongue.
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.03 |
| Overall Length (mm) | 26.2 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
| Burndy Die Index Number | 8 |
| Wire Strip Length (In.) | 42,952 |
| Wire Strip Length (mm) | 15.8 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
