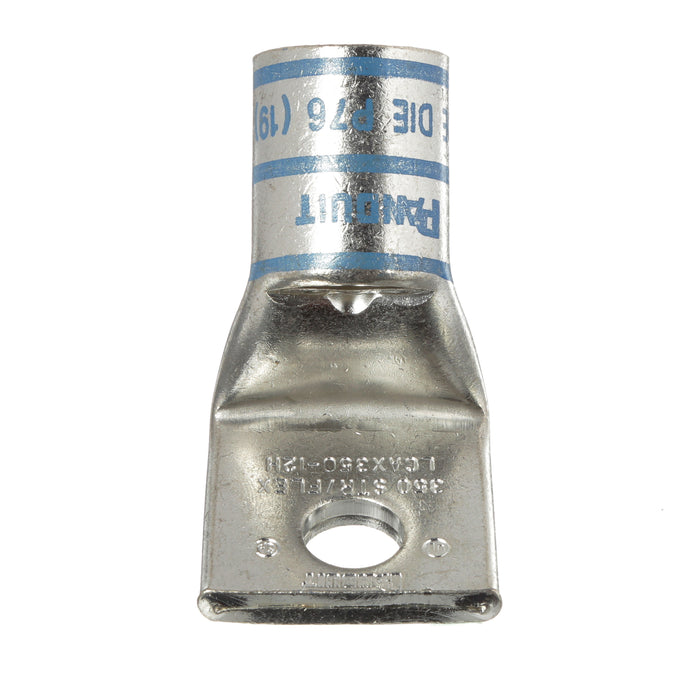

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAX350-12H-6
One-hole, flex lug, 350 kcmil cable, 1/2 stud hole, 45° angle tongue.
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.29 |
| Barrel Length (mm) | 32.8 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Angle | 45° |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 2.78 |
| Overall Length (mm) | 70.6 |
| Color Code | Blue |
| Panduit Die Index Number | P76 |
| Burndy Die Index Number | 19 |
| Wire Strip Length (In.) | 1,375 |
| Wire Strip Length (mm) | 34.9 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
