Panduit lugs [LCAX1/0-38-X], PAC268

Name: Panduit lugs [LCAX1/0-38-X], PAC268
Brand: Panduit
SKU: PAC268
Price: 114300.0 VND
Availability: InStock

by Panduit

114.300₫

(Giá chưa VAT).

Mã kho: PAC268

Mã nhà sản xuất: LCAX1/0-38-X

Quy cách đóng gói: 10

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAX1/0-38-X

MÔ TẢ SẢN PHẨM

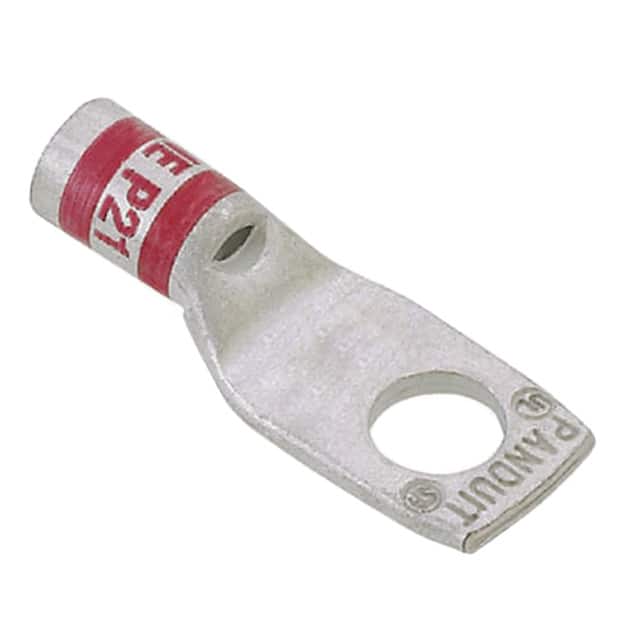

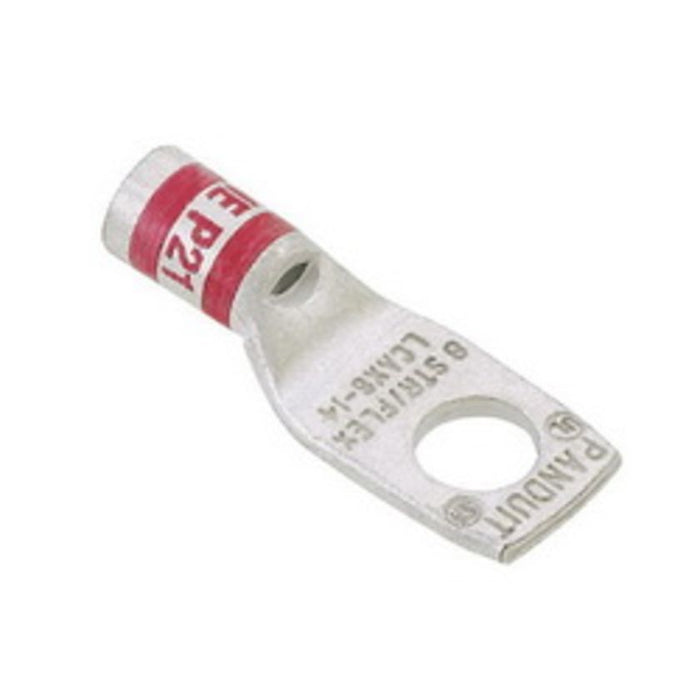

The LCAX1/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the bar

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	0.45
Inside Diameter (mm)	11.43
Outer Diameter (In.)	0.58
Outer Diameter (mm)	14.73
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Lug Type	1 Stud Hole Lug
Base Material	Copper
Class G Copper Flex Conductor Size (AWG)	1/0
Class H Copper Flex Conductor Size (AWG)	1/0
Class I Copper Flex Conductor Size (AWG)	1/0
Class K Copper Flex Conductor Size (AWG)	1/0
Class M Copper Flex Conductor Size (AWG)	1/0
Copper Code Conductor Size (AWG)	1/0
DLO Copper Flex Conductor Size (AWG)	1/0
Sub Brand	Pan-Lug™
Stud Hole Size (In.)	3/8
Stud Hole Size (mm)	9.5
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.72
Barrel Length (mm)	18.3
Tongue Type	Standard
Tongue Width (In.)	0.85
Tongue Width (mm)	21.6
Tongue Angle	Straight
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	1.89
Overall Length (mm)	48
Finish/Coating	Tin-Plated
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
T & B Die Index Number	12
Wire Strip Length (In.)	3/4
Wire Strip Length (mm)	19.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
