Panduit lugs [LCAS4-14F-L], PAC263

Name: Panduit lugs [LCAS4-14F-L], PAC263
Brand: Panduit
SKU: PAC263
Price: 62400.0 VND
Availability: InStock

by Panduit

62.400₫

(Giá chưa VAT).

Mã kho: PAC263

Mã nhà sản xuất: LCAS4-14F-L

Quy cách đóng gói: 50

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAS4-14F-L

MÔ TẢ SẢN PHẨM

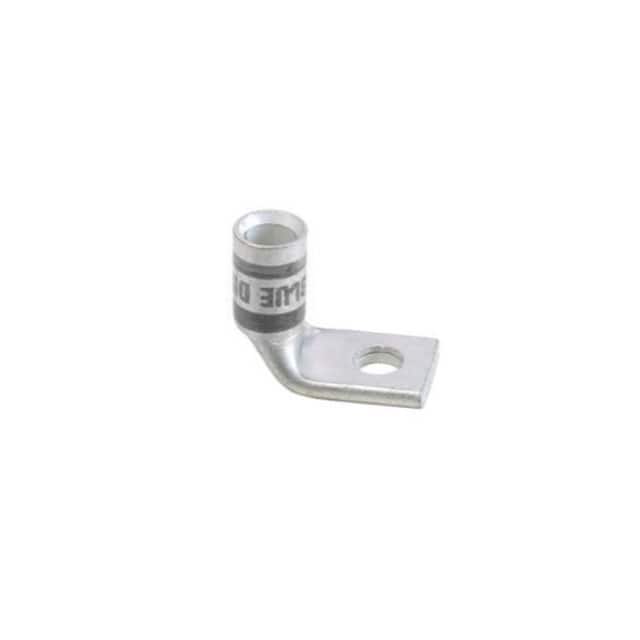

The LCAS4-14F-L Tin-Plated Copper Compression Lug, one-hole, short barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	0.28
Inside Diameter (mm)	7.11
Outer Diameter (In.)	0.38
Outer Diameter (mm)	9.65
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Lug Type	1 Stud Hole Lug
Base Material	Copper
Copper Code Conductor Size (AWG)	4
Sub Brand	Pan-Lug™
Stud Hole Size (In.)	1/4
Stud Hole Size (mm)	6.4
Barrel Type	Short Barrel with Inspection Window
Barrel Length (In.)	0.53
Barrel Length (mm)	13.5
Tongue Type	Standard
Tongue Width (In.)	0.55
Tongue Width (mm)	14
Tongue Angle	90°
Tongue Thickness (In.)	0.09
Tongue Thickness (mm)	2.3
Overall Length (In.)	1.12
Overall Length (mm)	28.44
Finish/Coating	Tin-Plated
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	Gray
Panduit Die Index Number	P29
Burndy Die Index Number	8
T & B Die Index Number	8
Wire Strip Length (In.)	5/8
Wire Strip Length (mm)	15.9
Part Features	Tin plated,color coded barrel,inspection window,short barrel for limited space apps,NEBS level 3.
