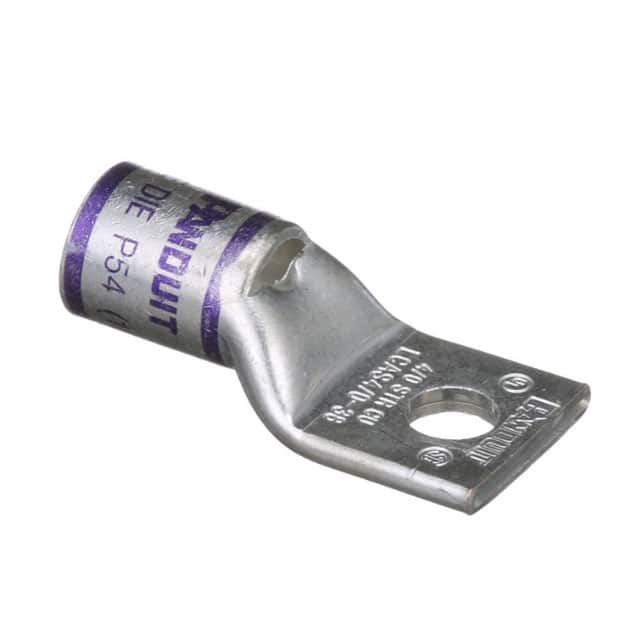

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAS4/0-38-X
One-hole, short barrel with window lug, 4/0 AWG wire, 3/8 stud hole.
| Copper Conductor Size (AWG) | 4/0 |
| Copper Conductor Size (kcmil) | 212 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Short Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.91 |
| Barrel Length (mm) | 23.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 2.17 |
| Overall Length (mm) | 55.1 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Burndy Die Index Number | 15 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| Part Features | Tin plated,color coded barrel,inspection window,short barrel for limited space apps,NEBS level 3. |
