![Panduit lugs [LCAN6-6-L], PAD245](http://nguyenxuong.com/cdn/shop/products/MFG_LCAN6-6-L_640x640.jpg?v=1597682007)

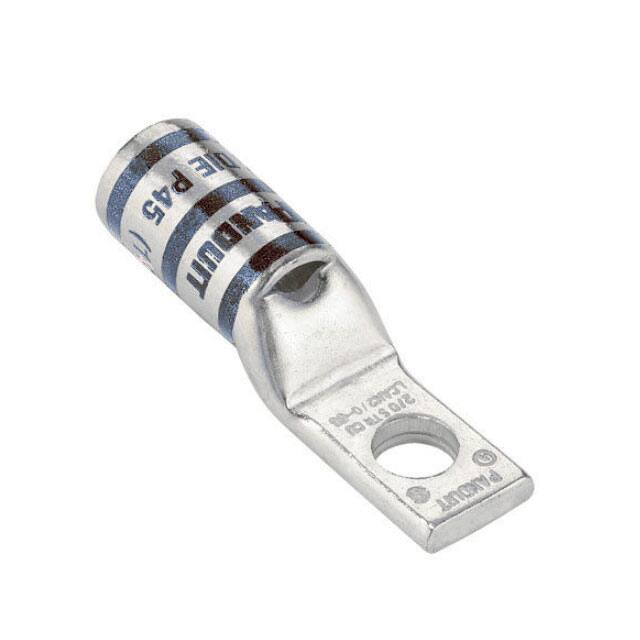

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAN6-6-L
One-hole, standard barrel with window, narrow tongue lug, #6 AWG wire, #6 stud hole.
| Copper Conductor Size (AWG) | #6 |
| Copper Conductor Size (kcmil) | 26.24 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.138 |
| Stud Hole Size (mm) | 3.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Narrow |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 1.51 |
| Overall Length (mm) | 38.4 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
| Burndy Die Index Number | 7 |
| Wire Strip Length (In.) | 42,954 |
| Wire Strip Length (mm) | 22.2 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
