Panduit lugs [LCAN4-10-L], PAC256

Name: Panduit lugs [LCAN4-10-L], PAC256
Brand: Panduit
SKU: PAC256
Price: 97100.0 VND
Availability: InStock

by Panduit

97.100₫

(Giá chưa VAT).

Mã kho: PAC256

Quantity

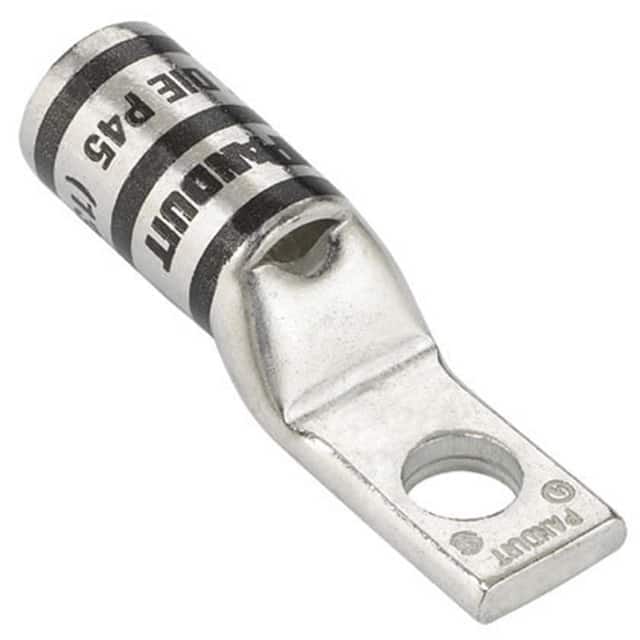

One-hole, standard barrel with window, narrow tongue lug, #4 — #3 AWG STR, #2 AWG SOL wire, #10 stud hole.

Copper Conductor Size (AWG)	#2
Copper Conductor Size (kcmil)	67.4
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	0.19
Stud Hole Size (mm)	4.8
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.81
Barrel Length (mm)	20.6
Tongue Type	Narrow
Tongue Width (In.)	0.4
Tongue Width (mm)	10.2
Tongue Angle	Straight
Tongue Thickness (In.)	0.11
Tongue Thickness (mm)	2.8
Overall Length (In.)	1.54
Overall Length (mm)	39.1
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Gray
Panduit Die Index Number	P29
Burndy Die Index Number	8
Wire Strip Length (In.)	42,954
Wire Strip Length (mm)	22.2
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
