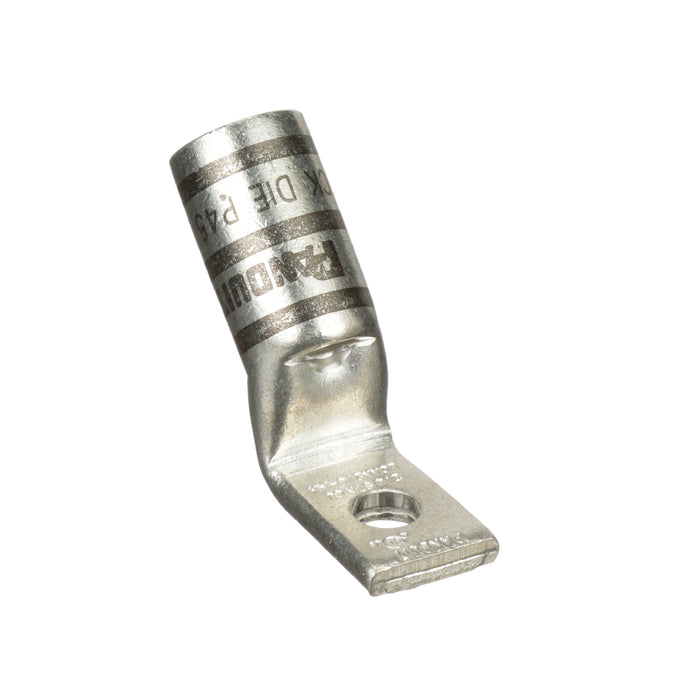

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAN4/0-56H-X
Copper Compression Lug, 1 Hole, #4/0 AWG, Narrow Tongue, 5/16" Stud, 45° Angle Tongue
| Lug Type | 1 Stud Hole Lug |
| Sub Brand | NA |
| Stud Hole Size (In.) | 5/16 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 1.19 |
| Barrel Length (mm) | 30.2 |
| Tongue Type | Narrow |
| Tongue Width (In.) | 0.71 |
| Tongue Width (mm) | 18 |
| Tongue Angle | 45° |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 1.98 |
| Overall Length (mm) | 50.3 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies |
| Maximum Voltage (kV) | 35 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Burndy Die Index Number | 15 |
| T & B Die Index Number | 54 |
| Wire Strip Length (In.) | 1 1/4 |
| Part Features | NA |
