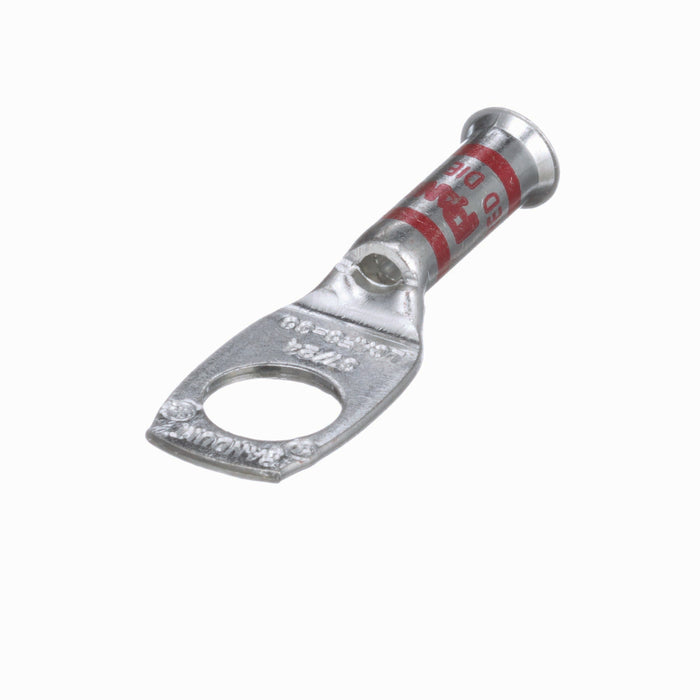

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAF8-38-L
One-hole, flared barrel, #8 AWG wire, 3/8 stud hole.
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.76 |
| Barrel Length (mm) | 19.3 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.6 |
| Tongue Width (mm) | 15.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 1.76 |
| Overall Length (mm) | 44.7 |
| Color Code | Red |
| Panduit Die Index Number | P21 |
| Wire Strip Length (mm) | 20.6 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
