![Panduit lugs [LCAF250-58-X], PAC223](http://nguyenxuong.com/cdn/shop/products/MFG_LCAF250-58-X_640x640.jpg?v=1597681723)

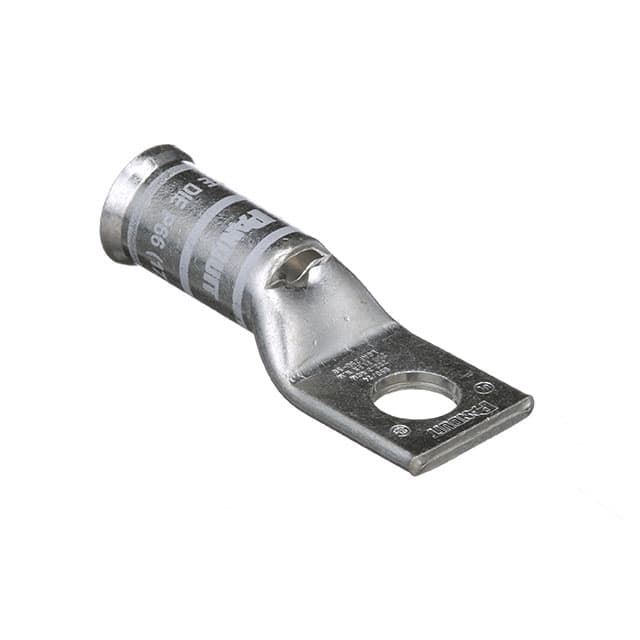

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAF250-58-X
One-hole, flared barrel, 250 kcmil cable, 5/8 stud hole.
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.952 |
| Stud Hole Size (mm) | 15.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.65 |
| Barrel Length (mm) | 42 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 1.28 |
| Tongue Width (mm) | 32.5 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.17 |
| Tongue Thickness (mm) | 4.3 |
| Overall Length (In.) | 3.51 |
| Overall Length (mm) | 89.2 |
| Color Code | White |
| Panduit Die Index Number | P66 |
| Wire Strip Length (In.) | 1.75 |
| Wire Strip Length (mm) | 44.5 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
