Mechanical & Compression Lugs & Splices > Mechanical & Compression Lugs & Splices

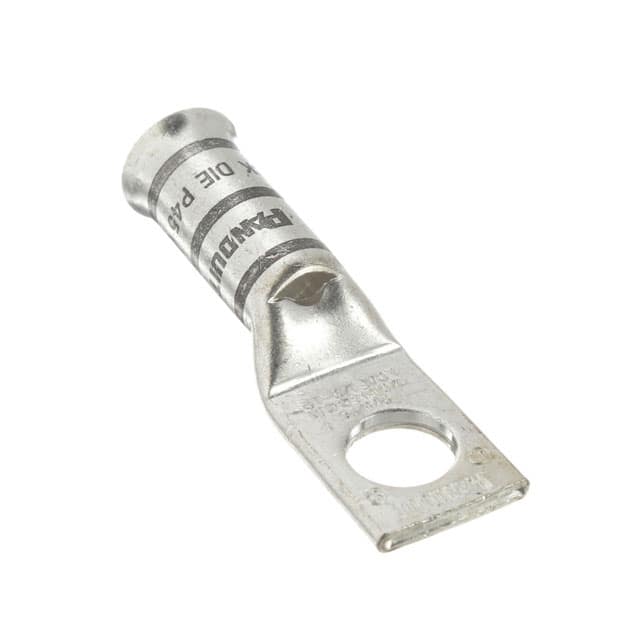

Panduit lugs [LCAF1/0-12-X], PAC216

by Panduit
185.700₫
(Giá chưa VAT).
Mã kho: PAC216

Mã nhà sản xuất: LCAF1/0-12-X

Đơn vị tính: PC

Quy cách đóng gói: 10

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAF1/0-12-X

MÔ TẢ SẢN PHẨM

One-Hole, flared barrel, 1/0 AWG wire, 1/2 stud hole.

_THÔNG SỐ KỸ THUẬT:

Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.767
Stud Hole Size (mm) 12.7
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 1.35
Barrel Length (mm) 34.3
Tongue Type Standard Tongue Width
Tongue Width (In.) 0.85
Tongue Width (mm) 21.6
Tongue Angle Straight
Tongue Thickness (In.) 0.13
Tongue Thickness (mm) 3.3
Overall Length (In.) 2.77
Overall Length (mm) 70.4
Color Code Black
Panduit Die Index Number P45
Wire Strip Length (In.) 14,375
Wire Strip Length (mm) 36.5
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
