![Panduit lugs [LCA500-1-6], PAC193](http://nguyenxuong.com/cdn/shop/products/MFG_LCA500-1-6_640x640.jpg?v=1597681713)

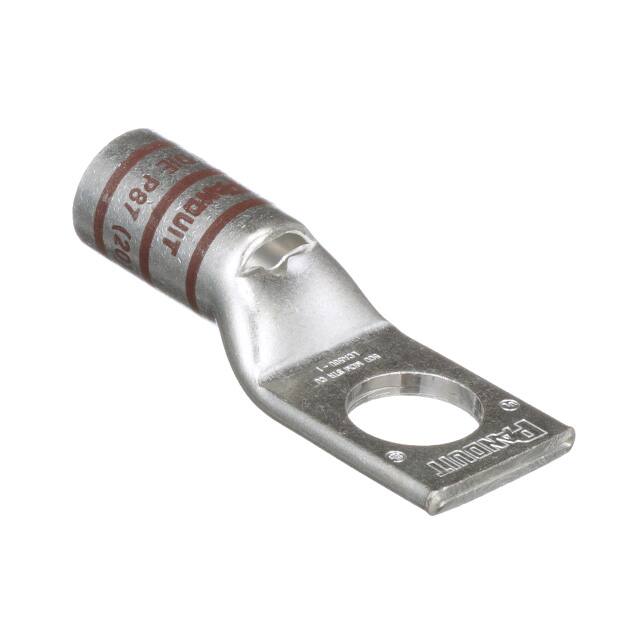

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA500-1-6
One-hole, standard barrel with window lug, 500 kcmil cable, 1 stud hole.
| Copper Conductor Size (kcmil) | 500 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1 |
| Stud Hole Size (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.75 |
| Barrel Length (mm) | 44.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 4.27 |
| Overall Length (mm) | 108.5 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
| Wire Strip Length (In.) | 1.81 |
| Wire Strip Length (mm) | 46 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
