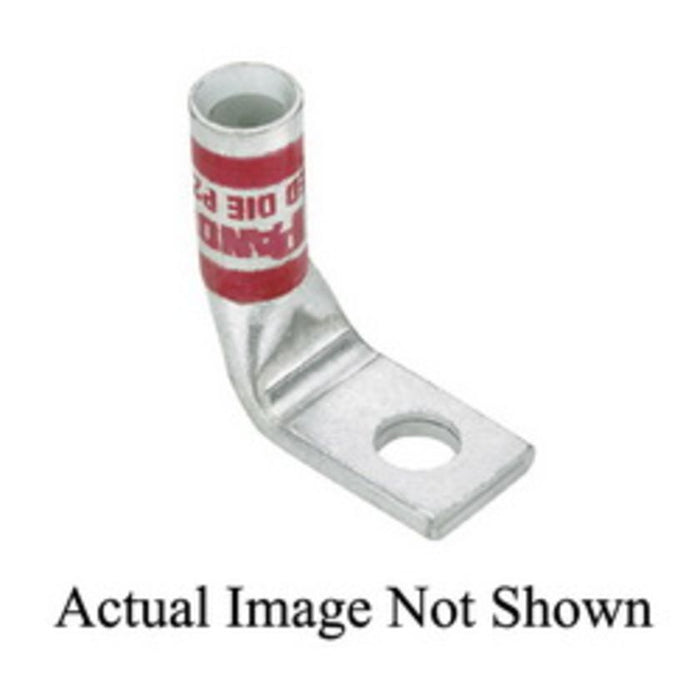

![Panduit lugs [LCA4-12F-L], PAC169](http://nguyenxuong.com/cdn/shop/products/1067193_Panduit_LCA10_10F_L_700x700.jpg?v=1597671998)
Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA4-12F-L
One-hole, standard barrel with window lug, #4 — #3 AWG STR, #2 AWG SOL wire, 90° angle tongue, 1/2 stud hole.
| Copper Conductor Size (AWG) | #2 |
| Copper Conductor Size (kcmil) | 67 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19.1 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 1.59 |
| Overall Length (mm) | 40.4 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
| Burndy Die Index Number | 8 |
| Wire Strip Length (In.) | 42,954 |
| Wire Strip Length (mm) | 22.2 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
