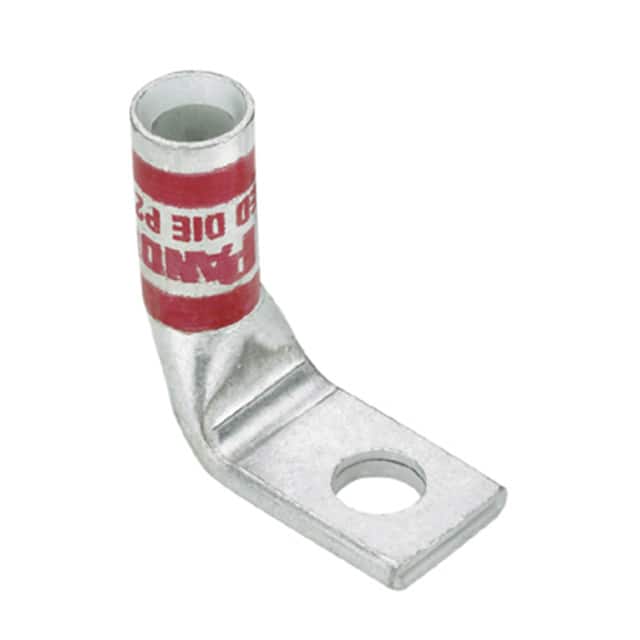

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA10-14F-L
One-hole, standard barrel with window lug, #10 AWG wire, 90° angle tongue, 1/4 stud hole.
| Copper Conductor Size (AWG) | #10 |
| Copper Conductor Size (kcmil) | 10.4 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.42 |
| Tongue Width (mm) | 10.7 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 0.94 |
| Overall Length (mm) | 23.9 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Wire Strip Length (In.) | 42,552 |
| Wire Strip Length (mm) | 11.1 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
