Panduit LCA Series Uninsulated Tubular Ring Terminal, 1/4in Stud Size, Silver [LCA10-14-L]; 847-8751

Name: Panduit LCA Series Uninsulated Tubular Ring Terminal, 1/4in Stud Size, Silver [LCA10-14-L]; 847-8751
Brand: Panduit
SKU: 8478751
Price: 12600.0 VND
Availability: InStock

by Panduit

12.600₫

(Giá chưa VAT).

Mã kho: 8478751

Mã nhà sản xuất: LCA10-14-L

Đơn vị tính: PC

Quy cách đóng gói: 50

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA10-14-L

MÔ TẢ SẢN PHẨM

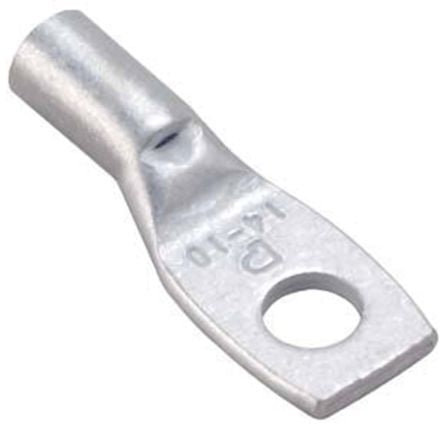

One-hole, standard barrel with window lug, #10 AWG wire, 1/4 stud hole.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG)	#10
Copper Conductor Size (kcmil)	10.4
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.38
Barrel Length (mm)	9.7
Tongue Type	Standard
Tongue Width (In.)	0.42
Tongue Width (mm)	10.7
Tongue Angle	Straight
Tongue Thickness (In.)	0.05
Tongue Thickness (mm)	1.3
Overall Length (In.)	1.16
Overall Length (mm)	29.4
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Wire Strip Length (In.)	42,552
Wire Strip Length (mm)	11.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
