![Panduit lugs [LCA1-56-E], PAC097](http://nguyenxuong.com/cdn/shop/products/7044_Panduit_LCA1_0_14H_X_700x700.jpg?v=1597671980)

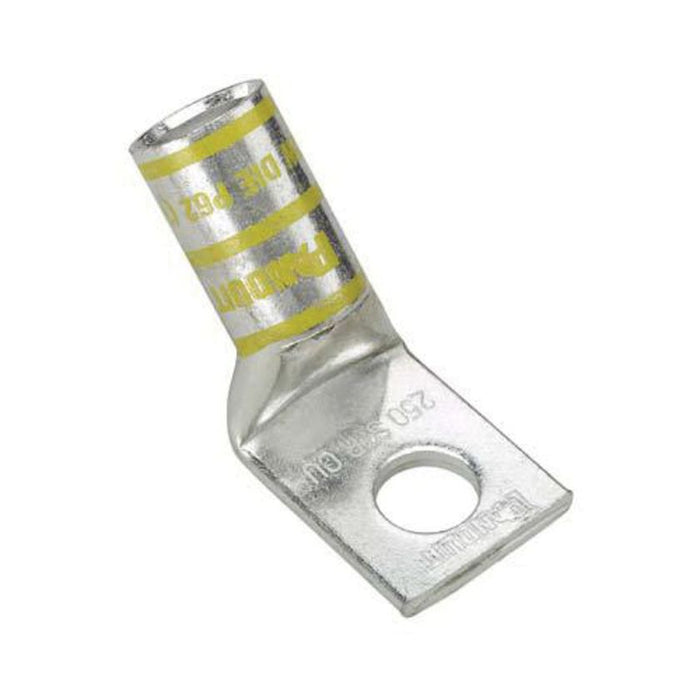

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA1-56-E
One-hole, standard barrel with window lug, #1 AWG wire, 5/16 stud hole.
| Copper Conductor Size (AWG) | #1 |
| Copper Conductor Size (kcmil) | 84 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Overall Length (In.) | 1.92 |
| Overall Length (mm) | 48.8 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
| Burndy Die Index Number | 11 |
| Wire Strip Length (mm) | 23.8 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
