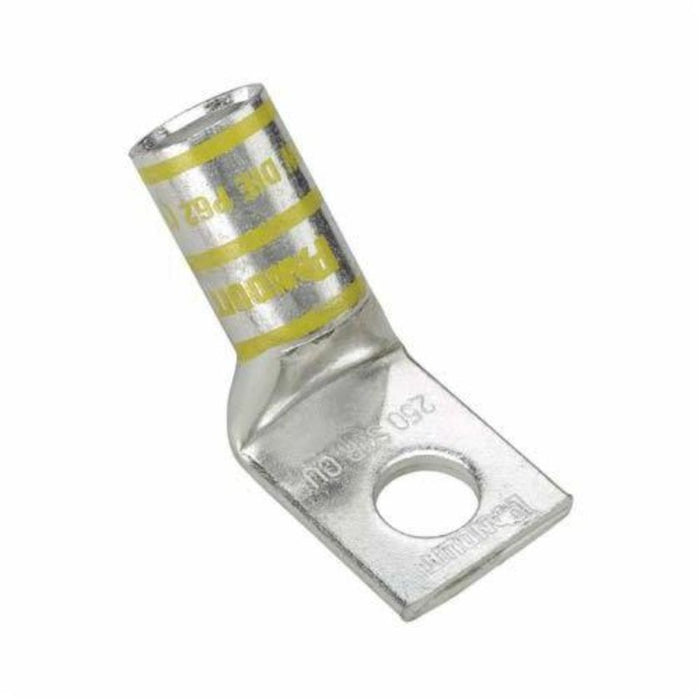

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCA1/0-38H-X
One-hole, standard barrel with window lug, 1/0 AWG wire, 45° angle tongue, 3/8 stud hole.
| Copper Conductor Size (AWG) | 1/0 |
| Copper Conductor Size (kcmil) | 106 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Angle | 45° |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 1.76 |
| Overall Length (mm) | 44.7 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
| Burndy Die Index Number | 12 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
