Panduit lugs [LAMA2/0-14-QY], PAC083

Name: Panduit lugs [LAMA2/0-14-QY], PAC083
Brand: Panduit
SKU: PAC083
Price: 78600.0 VND
Availability: InStock

by Panduit

78.600₫

(Giá chưa VAT).

Mã kho: PAC083

Mã nhà sản xuất: LAMA2/0-14-QY

Quy cách đóng gói: 25

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAMA2/0-14-QY

MÔ TẢ SẢN PHẨM

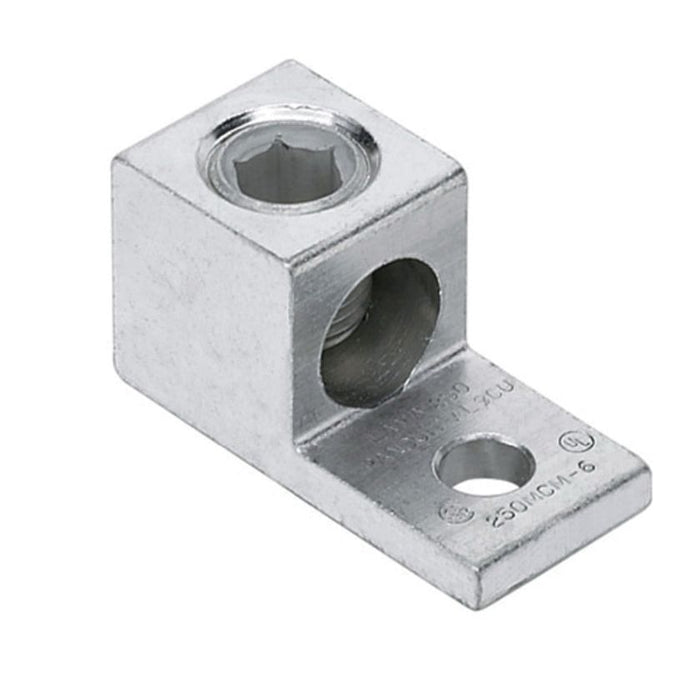

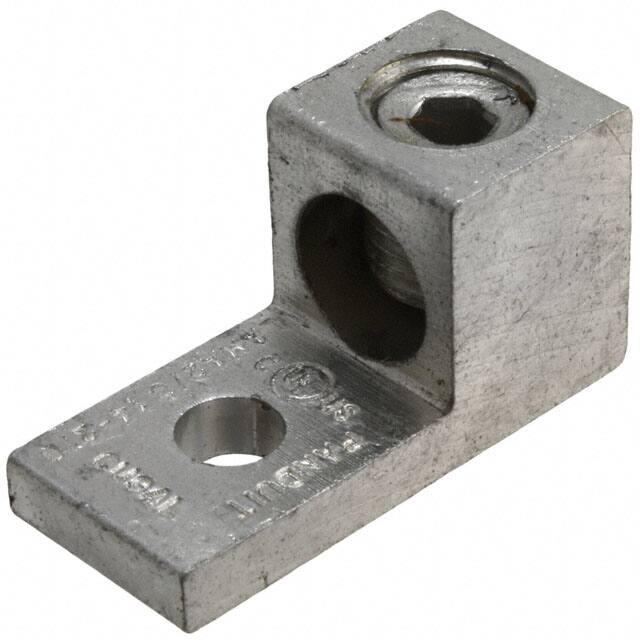

The LAMA2/0-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw

_THÔNG SỐ KỸ THUẬT:

Application	Stranded Aluminum or Copper Code Conductor
Note	LAMA2/0-14-QY replaces LAMA2/0-14-Q
Product Type	Aluminum Mechanical Connectors, One Hole, Single Barrel - Lugs
Base Material	Aluminum
Minimum Aluminum Conductor Size (AWG)	14
Minimum Copper Conductor Size (AWG STR)	14
Maximum Aluminum Conductor Size (AWG)	2/0
Maximum Copper Conductor Size (AWG STR)	2/0
Stud Hole Size (In.)	1/4
Stud Hole Size (mm)	6.35
Number of Holes	1
Tongue Type	Straight Tongue
Tongue Angle	Straight
Tongue Length (In.)	0.83
Tongue Length (mm)	21
Tongue Thickness (In.)	0.19
Tongue Thickness (mm)	4.8
Tongue Width (In.)	0.63
Tongue Width (mm)	16
Overall Height (In.)	0.77
Overall Height (mm)	19.5
Overall Length (In.)	1.46
Overall Length (mm)	37
Overall Width (In.)	0.63
Overall Width (mm)	16
Barrel Type	Single Barrel
Barrel Length (In.)	0.63
Barrel Length (mm)	16
Finish/Coating	Tin-Plated
Standards Met	cULus Listed for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C)	90
Maximum Voltage (V)	600
Hex Size (In.)	3/16
Hex Size (mm)	4.76
Sub Brand	Pan-Lug™
Wire Strip Length (In.)	0.62
Wire Strip Length (mm)	15.7
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
