Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

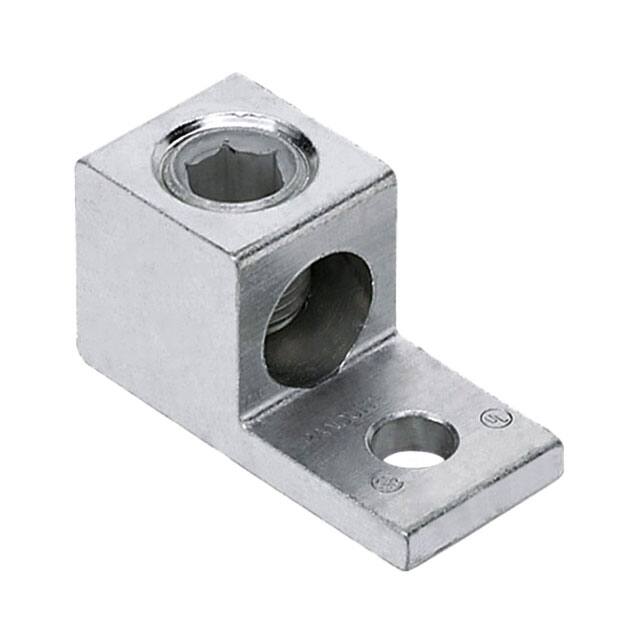

Wire Termination, Mechanical & Compression Lugs & Splices: Panduit LAMA1000-58-6Y
_THÔNG SỐ KỸ THUẬT:
| Note | LAMA1000-58-6Y replaces LAMA1000-58-6 |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 44324 |
| Number of Holes | 1 |
| Tongue Type | Straight |
| Tongue Length (In.) | 1.88 |
| Tongue Length (mm) | 44.5 |
| Tongue Thickness (In.) | 0.5 |
| Tongue Thickness (mm) | 11.2 |
| Tongue Width (In.) | 1.75 |
| Tongue Width (mm) | 44.5 |
| Overall Height (In.) | 1.9 |
| Overall Height (mm) | 54.1 |
| Overall Length (In.) | 3.5 |
| Overall Length (mm) | 88.9 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| UL Temperature Rating (°C) | 90 |
| Hex Size (mm) | 14.3 |
| Sub Brand | Pan-Lug |
| Part Features | Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. |
