Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAM4D250-12-1Y

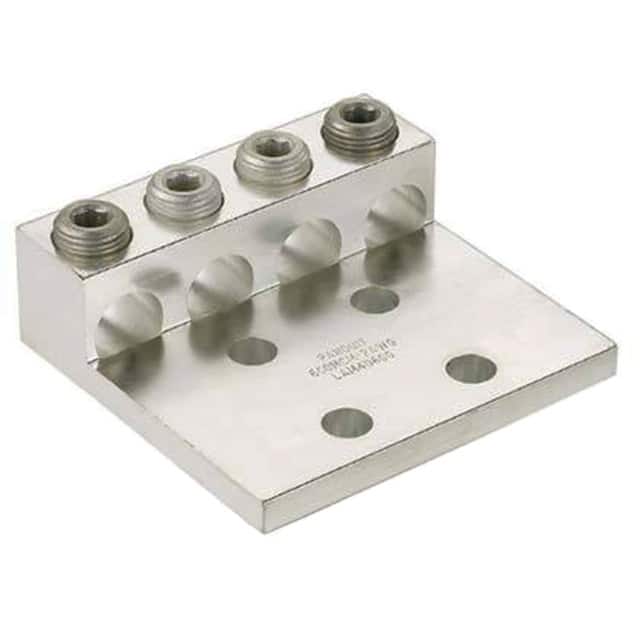

Four-hole, aluminum, four barrel lug, type LAM4D, NEMA hole sizes and spacing, #6 AWG - 250 kcmil, 1/2 (12.7mm) stud hole.
| Note | LAM4D250-12-1Y replaces LAM4D250-12-1 |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Number of Holes | 4 |
| Tongue Type | Straight |
| Tongue Length (In.) | 3.25 |
| Tongue Length (mm) | 82.6 |
| Tongue Thickness (In.) | 0.31 |
| Tongue Thickness (mm) | 7.9 |
| Tongue Width (In.) | 4.04 |
| Tongue Width (mm) | 102.6 |
| Overall Height (In.) | 1.2 |
| Overall Height (mm) | 30.2 |
| Overall Length (In.) | 4.25 |
| Overall Length (mm) | 108 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Hex Size (mm) | 7.9 |
| Sub Brand | Pan-Lug |
| Part Features | Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. |
