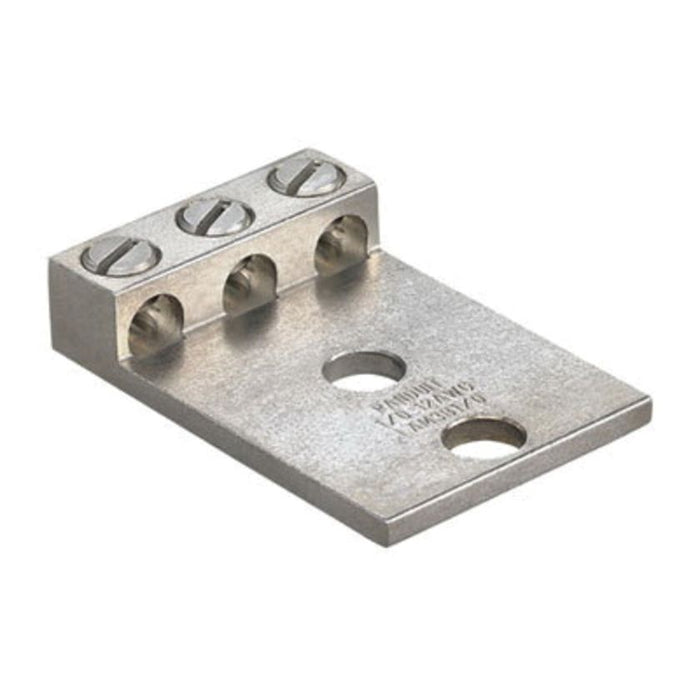

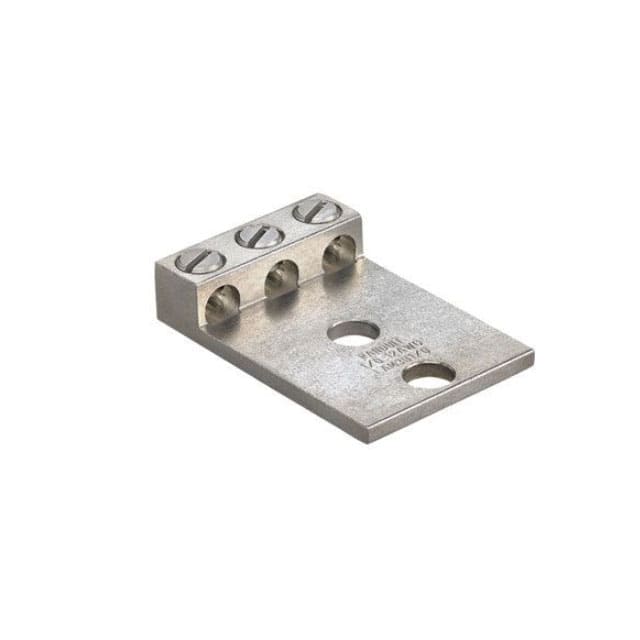

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAM3B1/0-38-6Y
Two-hole, aluminum, three barrel lug, type LAM3B, NEMA hole sizes and spacing, #12 - 1/0 AWG, 3/8 (9.5mm) stud hole.
| Note | LAM3B1/0-38-6Y replaces LAM3B1/0-38-6 |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Number of Holes | 2 |
| Tongue Type | Straight |
| Tongue Length (In.) | 2.16 |
| Tongue Length (mm) | 54.9 |
| Tongue Thickness (In.) | 0.25 |
| Tongue Thickness (mm) | 6.4 |
| Tongue Width (In.) | 2 |
| Tongue Width (mm) | 49.3 |
| Overall Height (In.) | 0.9 |
| Overall Height (mm) | 16 |
| Overall Length (In.) | 2.91 |
| Overall Length (mm) | 74.7 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Sub Brand | Pan-Lug |
| Part Features | Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. |
