![Panduit lugs [LAM2SB600-38-1Y], PAC074](http://nguyenxuong.com/cdn/shop/products/404034_Panduit_LAM2SB600_38_1Y_700x700.jpg?v=1597671978)

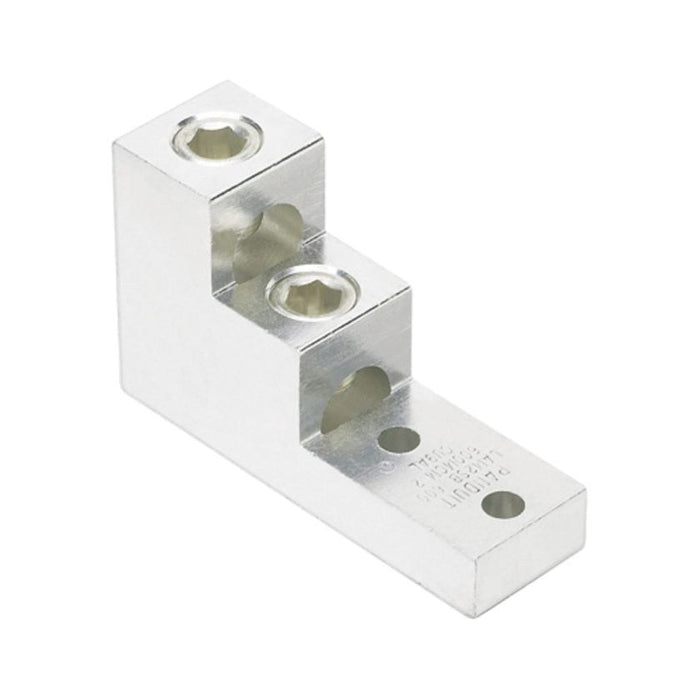

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAM2SB600-38-1Y
Two-hole, aluminum, two barrel lug, dual barrel, type LAM2SB, #2 AWG - 600 kcmil, 3/8 (9.5mm) stud hole.
| Application | Stranded Aluminum or Copper Code Conductor |
| Note | LAM2SB600-38-1Y replaces LAM2SB600-38-1 |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Spacing (In.) | 1.38 |
| Stud Hole Spacing (mm) | 35.1 |
| Number of Holes | 2 |
| Tongue Type | Straight |
| Tongue Length (In.) | 2.34 |
| Tongue Thickness (In.) | 0.75 |
| Tongue Width (In.) | 1.5 |
| Tongue Width (mm) | 38.1 |
| Overall Height (In.) | 3 |
| Overall Height (mm) | 76.2 |
| Overall Length (In.) | 4.91 |
| Overall Length (mm) | 124.7 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Sub Brand | Pan-Lug |
| Part Features | Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. |
