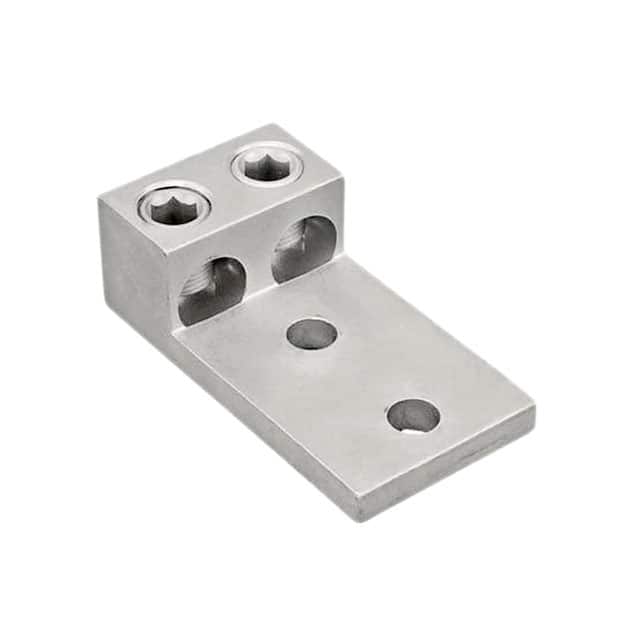

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAM2B350-12-3Y
Two-hole, aluminum, two barrel lug, dual barrel, type LAM2B, NEMA hole sizes and spacing, #6 AWG - 350 kcmil, 1/2 (12.7mm) stud hole.
| Application | Stranded Aluminum or Copper Code Conductor |
| Note | LAM2B350-12-3Y replaces LAM2B350-12-3 |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Number of Holes | 2 |
| Tongue Type | Straight |
| Tongue Length (In.) | 3.06 |
| Tongue Length (mm) | 77.7 |
| Tongue Thickness (In.) | 0.25 |
| Tongue Thickness (mm) | 6.4 |
| Tongue Width (In.) | 1.91 |
| Tongue Width (mm) | 49.3 |
| Overall Height (In.) | 1.3 |
| Overall Height (mm) | 31.8 |
| Overall Length (In.) | 4.19 |
| Overall Length (mm) | 106.4 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL |
| UL Temperature Rating (°C) | 90 |
| Hex Size (mm) | 7.9 |
| Sub Brand | Pan-Lug |
| Part Features | Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. |
