Panduit lugs [LAM2A350-12-6Y], PAC069

Name: Panduit lugs [LAM2A350-12-6Y], PAC069
Brand: Panduit
SKU: PAC069
Price: 553600.0 VND
Availability: InStock

by Panduit

553.600₫

(Giá chưa VAT).

Mã kho: PAC069

Mã nhà sản xuất: LAM2A350-12-6Y

Quy cách đóng gói: 6

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAM2A350-12-6Y

MÔ TẢ SẢN PHẨM

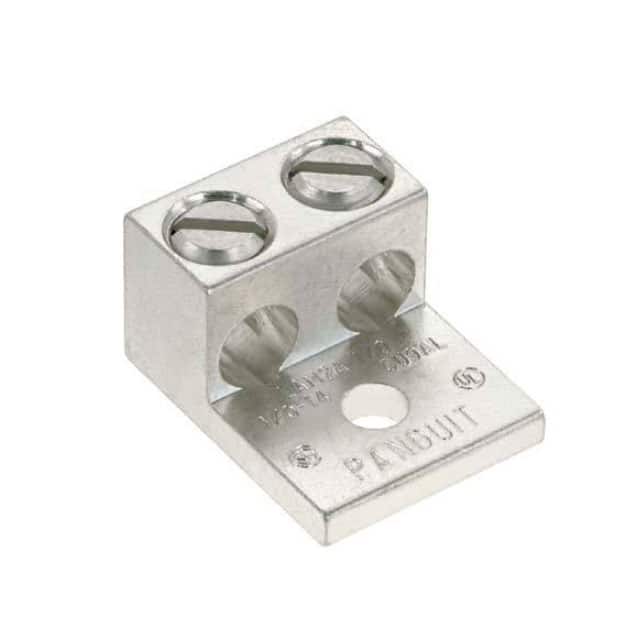

The LAM2A350-12-6Y Tin-Plated Aluminum Mechanical Connector, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw pr

_THÔNG SỐ KỸ THUẬT:

Application	Stranded Aluminum or Copper Code Conductor
Note	LAM2A350-12-6Y replaces LAM2A350-12-6
Product Type	Mechanical Connectors - Lugs
Base Material	Aluminum
Minimum Aluminum Conductor Size (AWG)	6
Minimum Copper Conductor Size (AWG STR)	6
Maximum Aluminum Conductor Size (kcmil)	350
Maximum Copper Conductor Size (kcmil)	350
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Number of Holes	1
Tongue Type	Straight Tongue
Tongue Angle	Straight
Tongue Length (In.)	1.75
Tongue Length (mm)	44.4
Tongue Thickness (In.)	0.28
Tongue Thickness (mm)	7.1
Tongue Width (In.)	1.73
Tongue Width (mm)	43.9
Overall Height (In.)	1.25
Overall Height (mm)	31.7
Overall Length (In.)	2.88
Overall Length (mm)	73.1
Overall Width (In.)	1.91
Overall Width (mm)	48.5
Barrel Type	Two Barrel
Barrel Length (In.)	1.13
Barrel Length (mm)	28.7
Finish/Coating	Tin-Plated
Standards Met	cULus Listed for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C)	90
Maximum Voltage (V)	600
Hex Size (In.)	5/16
Hex Size (mm)	7.9
Sub Brand	Pan-Lug™
Wrench Size (In.)	0.312
Wire Strip Length (In.)	1.13
Wire Strip Length (mm)	28.7
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
