![Panduit lugs [LAM2A2/0-14-6Y], PAC067](http://nguyenxuong.com/cdn/shop/products/298955_Panduit_LAM2A1_0_14_6Y_700x700.jpg?v=1597671975)

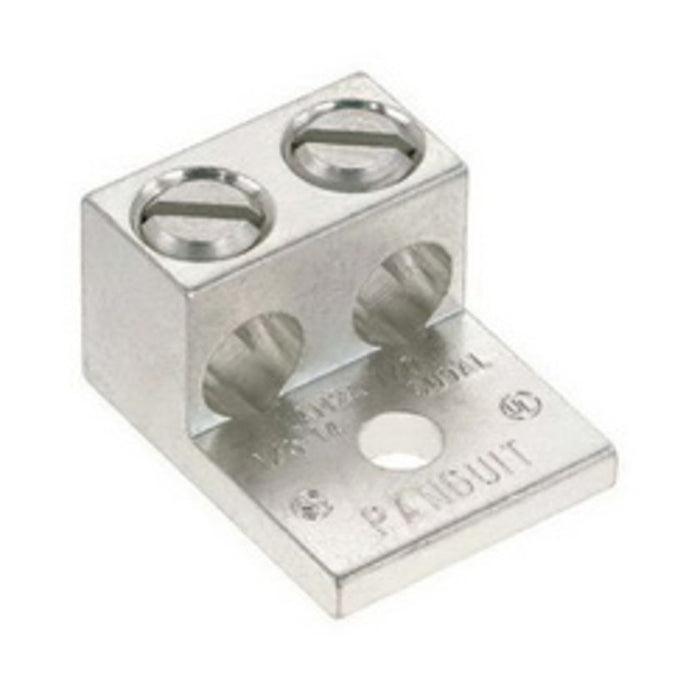

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAM2A2/0-14-6Y
One-hole, aluminum, two barrel lug, dual barrel, type LAM2A, NEMA hole sizes and spacing, #14 - 2/0 AWG, 1/4 (6.4mm) stud hole.
| Application | Stranded Aluminum or Copper Code Conductor |
| Note | LAM2A2/0-14-6Y replaces LAM2A2/0-14-6 |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 1/4 |
| Number of Holes | 1 |
| Tongue Type | Straight |
| Tongue Length (In.) | 0.85 |
| Tongue Length (mm) | 21.6 |
| Tongue Thickness (In.) | 0.19 |
| Tongue Thickness (mm) | 4.8 |
| Tongue Width (In.) | 1.2 |
| Tongue Width (mm) | 30.6 |
| Overall Height (In.) | 0.8 |
| Overall Height (mm) | 19.9 |
| Overall Length (In.) | 1.47 |
| Overall Length (mm) | 37.3 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL |
| UL Temperature Rating (°C) | 90 |
| Hex Size (mm) | 4.8 |
| Sub Brand | Pan-Lug |
| Part Features | Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. |
