![Panduit lugs [LAB800-12-1], PAC064](http://nguyenxuong.com/cdn/shop/products/864808_Panduit_LAB1_0_38_X_700x700.jpg?v=1597671975)

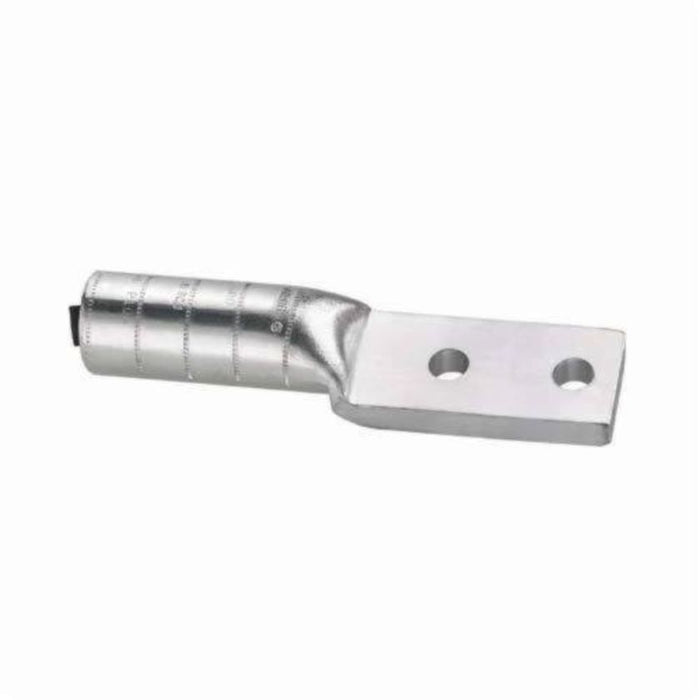

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAB800-12-1
Two-hole, aluminum, long barrel, 800 kcmil, 1/2 (12.7mm) stud hole.
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Length (In.) | 3.42 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.72 |
| Tongue Width (mm) | 43.7 |
| Tongue Thickness (In.) | 0.59 |
| Tongue Thickness (mm) | 15 |
| Overall Length (In.) | 8.3 |
| Overall Length (mm) | 210.8 |
| Color Code | Gray |
| Panduit Die Index Number | P140 |
| Burndy Die Index Number | 474 |
| Wire Strip Length (In.) | 3.44 |
| Wire Strip Length (mm) | 87.3 |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Part Features | Dual rated,prefilled joint compound,enclosed barrel,tin plated to inhibit corrosion. |
