Panduit lugs [LAB600-12-2], PAC063

Name: Panduit lugs [LAB600-12-2], PAC063
Brand: Panduit
SKU: PAC063
Price: 1765400.0 VND
Availability: InStock

by Panduit

1.765.400₫

(Giá chưa VAT).

Mã kho: PAC063

Mã nhà sản xuất: LAB600-12-2

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAB600-12-2

MÔ TẢ SẢN PHẨM

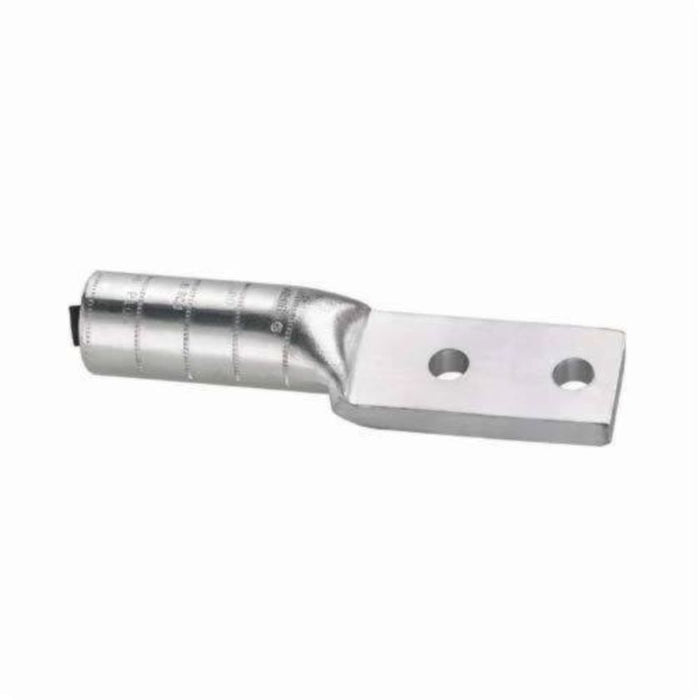

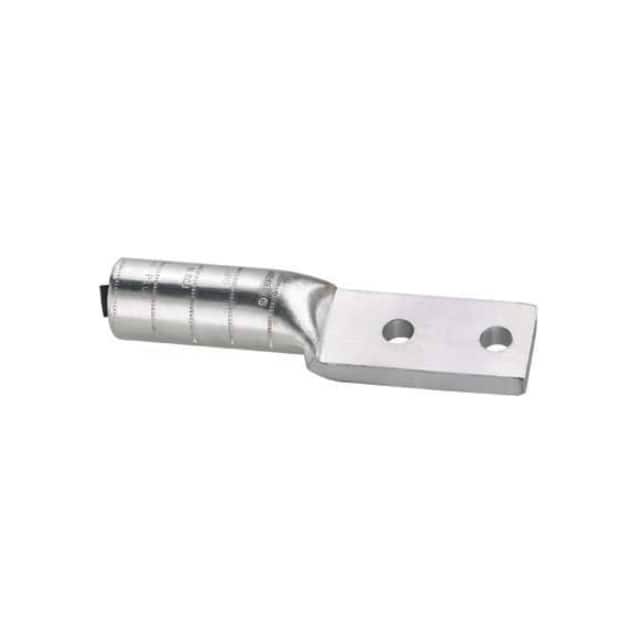

The LAB600-12-2 Tin-Plated Aluminum Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps t

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	0.92
Inside Diameter (mm)	23.36
Outer Diameter (In.)	1.44
Outer Diameter (mm)	36.57
Product Type	Compression Connectors - Lugs
Lug Type	2 Stud Hole Lug
Base Material	Aluminum
Aluminum Conductor Size (kcmil)	600
Copper Code Conductor Size (kcmil)	600
Sub Brand	Pan-Lug™
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Standard Barrel no Inspection Window
Barrel Length (In.)	3
Barrel Length (mm)	76.2
Tongue Type	Standard
Tongue Width (In.)	1.73
Tongue Width (mm)	43.94
Tongue Angle	Straight
Tongue Thickness (In.)	0.5
Tongue Thickness (mm)	12.7
Overall Length (In.)	7.56
Overall Length (mm)	192.02
Finish/Coating	Tin-Plated
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	Black
Panduit Die Index Number	P106
Burndy Die Index Number	473
Wire Strip Length (In.)	3-1/16
Wire Strip Length (mm)	77.7
Includes	Connector barrel pre-filled with oxide inhibiting joint compound
Part Features	Dual rated,prefilled joint compound,enclosed barrel,tin plated to inhibit corrosion.
