Panduit lugs [LAA500-12-2], PAC052

Name: Panduit lugs [LAA500-12-2], PAC052
Brand: Panduit
SKU: PAC052
Price: 1630300.0 VND
Availability: InStock

by Panduit

1.630.300₫

(Giá chưa VAT).

Mã kho: PAC052

Mã nhà sản xuất: LAA500-12-2

Đơn vị tính: PC

Quy cách đóng gói: 2

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAA500-12-2

MÔ TẢ SẢN PHẨM

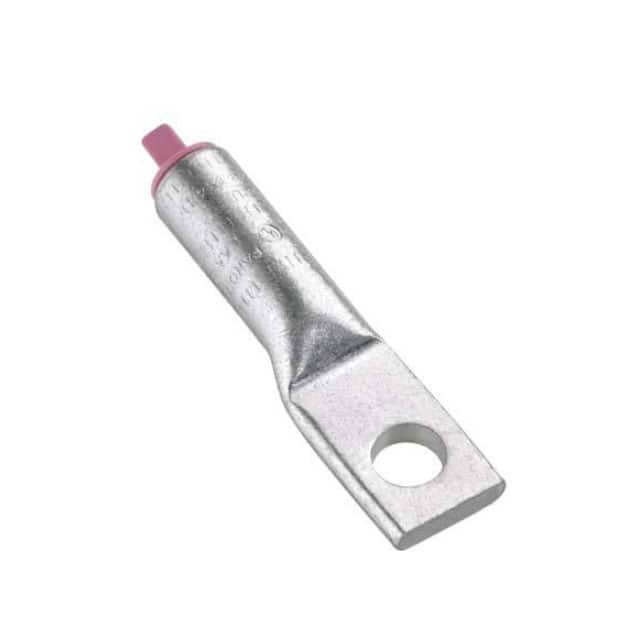

The LAA500-12-2 Aluminum Compression Connector Lug, one-hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory

_THÔNG SỐ KỸ THUẬT:

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Length (In.)	3
Tongue Type	Standard
Tongue Width (In.)	1.75
Tongue Width (mm)	44.5
Tongue Thickness (In.)	0.44
Tongue Thickness (mm)	11.2
Overall Length (In.)	5.56
Overall Length (mm)	141.2
Color Code	Pink
Panduit Die Index Number	P99
Burndy Die Index Number	300
Wire Strip Length (In.)	3.06
Wire Strip Length (mm)	77.8
Includes	Connector barrel pre-filled with oxide inhibiting joint compound
Part Features	Dual rated,prefilled joint compound,enclosed barrel,tin plated to inhibit corrosion.
