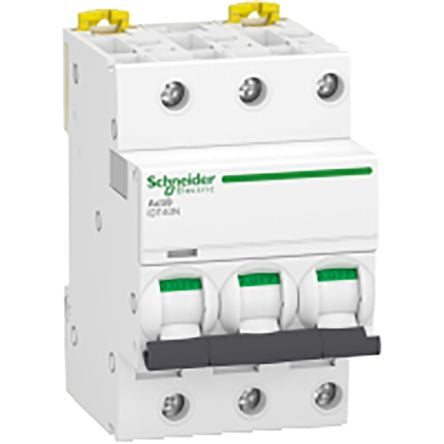

Acti9 iDT40N - modular circuit breaker - [A9P34316]; 191-6116
0₫
Mã kho: 1916116
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Model Number | A9P34316 |
| Range | Acti 9 |
| Series | Acti9iDT40N |
| Number of Poles | 3P |
| Current Rating | 16 A |
| Tripping Characteristics | Type D |
| Rated AC Voltage | 400 V ac |
| Mounting Style | DIN Rail |
| Breaking Capacity | 10 kA |
| Length | 72mm |
| Width | 74mm |
| Depth | 85mm |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Contact Type | Screw |
| Reset Actuator Type | Toggle Switch |
| Circuit Breaker Type | MCB |
