![Schneider Electric A9P24732 1916113](http://nguyenxuong.com/cdn/shop/products/Y1916113-01_444x444.jpg?v=1594294077)

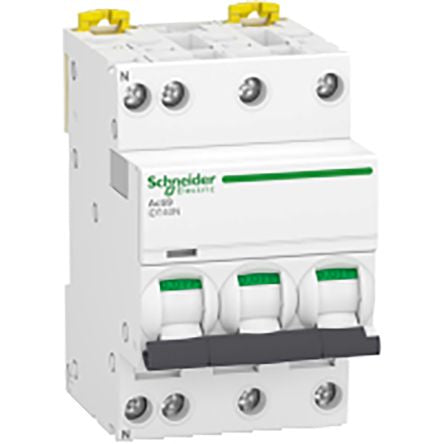

Acti9 iDT40N - modular circuit breaker - [A9P24732]; 191-6113
0₫
Mã kho: 1916113
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Model Number | A9P24732 |
Range | Acti 9 |
Series | Acti9iDT40N |
Number of Poles | 3 + N |
Current Rating | 32 A |
Tripping Characteristics | Type C |
Rated AC Voltage | 400 V ac |
Mounting Style | DIN Rail |
Breaking Capacity | 10 kA |
Length | 72mm |
Width | 74mm |
Depth | 85mm |
Circuit Breaker Type | MCB |
Terminal Contact Type | Screw |
Tripping Mechanism | Thermal-Magnetic |
Reset Actuator Type | Toggle Switch |
