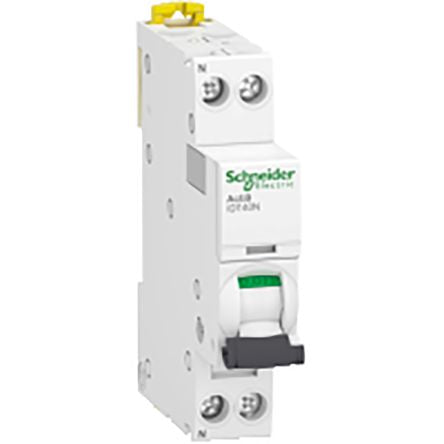

Acti9 iDT40N - modular circuit breaker - [A9P24620]; 191-6110
0₫
Mã kho: 1916110
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Acti 9 |
| Model Number | A9P24620 |
| Series | Acti9iDT40N |
| Number of Poles | 1 + N |
| Current Rating | 20 A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 400 V ac |
| Mounting Style | DIN Rail |
| Breaking Capacity | 10 kA |
| Length | 72mm |
| Width | 74mm |
| Depth | 85mm |
| Terminal Contact Type | Screw |
| Circuit Breaker Type | MCB |
| Tripping Mechanism | Thermal-Magnetic |
| Reset Actuator Type | Toggle Switch |
