![Schneider Electric A9F53120 7913168](http://nguyenxuong.com/cdn/shop/products/F7913168-01_334x445.jpg?v=1594026284)

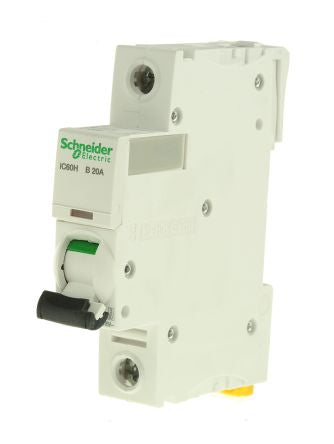

Schneider Electric Acti 9 iC60H MCB Mini Circuit Breaker 1P, 20 A, 10 KA, Curve B [A9F53120]; 791-3168
0₫
Mã kho: 7913168
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | Acti 9 |
Series | iC60H |
Number of Poles | 1 |
Current Rating | 20 A |
Tripping Characteristics | Type B |
Rated AC Voltage | 12 → 60 V, 100 → 133 V, 220 → 240 V |
Rated DC Voltage | 12 → 48 V, 72 V |
Mounting Style | DIN Rail |
Breaking Capacity | 10 kA |
Length | 85mm |
Width | 18mm |
Depth | 78.5mm |
Tripping Mechanism | Thermal-Magnetic |
Terminal Contact Type | Screw |
Reset Actuator Type | Rocker |
Circuit Breaker Type | MCB |
