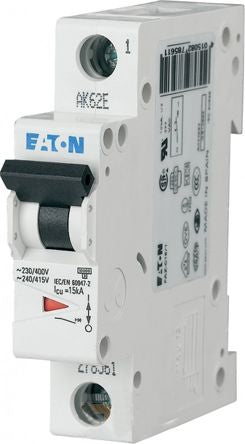

Eaton xEffect FAZ MCB Mini Circuit Breaker 1P, 500 mA, 10 kA, Curve C [FAZ-C0,5/1-NA]; 922-6885
by Eaton
0₫
Mã kho: 9226885
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | XEffect |
| Series | FAZ |
| Number of Poles | 1 |
| Current Rating | 500 mA |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 240 → 415 V |
| Rated DC Voltage | 48V |
| Breaking Capacity | 10 kA |
| Length | 17.8mm |
| Width | 65.5mm |
| Depth | 80mm |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Contact Type | Screw |
| Circuit Breaker Type | MCB |
| Break Time | Instantaneous |
| Application | Computers, Control Instrumentation, External Load Circuit, HACR Internal/External Equipment, Internal/External Convenience Receptacle Circuit, Motor Control Circuit, PLC I/O Point, Power Conditioner, Power Supplies, Relay, Uninterruptable Power Supplies |
| Special Features | Current Limiting Design Provides Fast Short-Circuit Interruption, Field-Installable Shunt Trip and Auxiliary Switch Subsequent Mounting, Possibility for Sealing the Toggle In ON or OFF Position, Suitable For Branch Circuit Device Protection, Thermal-Magnetic Overcurrent Protection |
| Reset Actuator Type | Toggle Switch |
