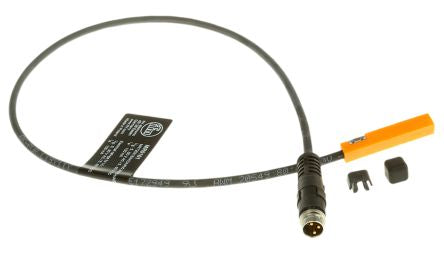

ifm Electronic Block PNP/NPN 1 kHz Magnetic Pickup, 100 mA, 5 → 50 V ac, 5 → 60 V dc, IP67 [MR0101]; 741-7537
0₫
Mã kho: 7417537
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP/NPN |
| Switching Frequency | 1 kHz |
| Reverse Polarity Protection | Yes |
| Terminal Type | 3-Pin M8 Connector |
| Mounting Style | Flush |
| Switching Current | 100 mA |
| Maximum AC Voltage | 50V |
| Maximum DC Voltage | 60V |
| Supply Voltage | 5 → 50 V ac, 5 → 60 V dc |
| Housing Material | Polyamide |
| Minimum Operating Temperature | -25°C |
| IP Rating | IP67 |
| Maximum Operating Temperature | +70°C |
| Dimensions | 30.5 x 5 x 6.5 mm |
| Depth | 6.5mm |
| Length | 30.5mm |
| Width | 5mm |
