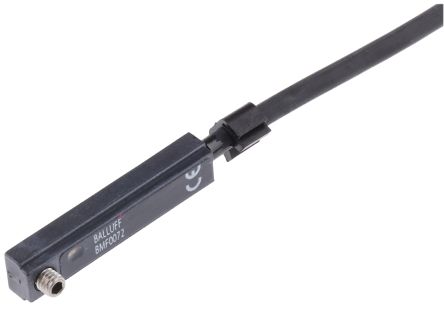

![BALLUFF BMF 307K-PS-C-2-SA2-S49-00,3 8141174](http://nguyenxuong.com/cdn/shop/products/F8141174-01_444x310.jpg?v=1594445766)
BALLUFF Barrel PNP Magnetic Pickup, 10 → 30 V dc, IP67 [BMF 307K-PS-C-2-SA2-S49-00,3]; 814-1174
by BALLUFF
0₫
Mã kho: 8141174
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Output Type | PNP |
Switching Frequency | 10 kHz |
Reverse Polarity Protection | Yes |
Short Circuit Overload Protection | Yes |
Terminal Type | Cable |
Mounting Style | Cable |
Maximum DC Voltage | 30V |
Supply Voltage | 10 → 30 V dc |
Housing Material | Polyamide |
Minimum Operating Temperature | -25°C |
Dimensions | 29 x 6.2 x 4.4 mm |
IP Rating | IP67 |
Length | 29mm |
Depth | 4.4mm |
Maximum Operating Temperature | +85°C |
Width | 6.2mm |
