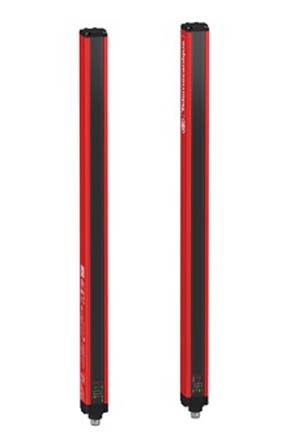

Preventa XUSL4E Light Beam Receiver, Transmitter, 2 Beam, 10 m, 20 m Max Range [XUSL4E2BB051L]; 127-8323
0₫
Mã kho: 1278323
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa |
| Series | XUSL4E |
| Component Type | Receiver, Transmitter |
| Maximum Scanning Distance | 10 m, 20 m |
| Minimum Scanning Distance | 3m |
| Safety Type | 4 |
| SIL IEC 61508 | 3 |
| PL EN ISO 13849-1 | E |
| Peak Wavelength | 950nm |
| Number of Beams | 2 |
| Maximum Response Time | 2.5 ms |
| Terminal Type | 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) |
| Dimensions | 31 x 29.4 x 653 mm |
| Protective Height | 510mm |
| Width | 29.4mm |
| Length | 31mm |
| Features | Automatic/Manual Restart, Multi-Colour LEDs, 2 PNP Output |
| Application | Body |
| Height | 653mm |
