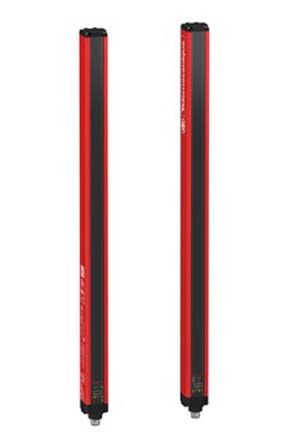

XUSL4E Light Curtain Receiver, Transmitter, 30 Beams, 14mm Resolution [XUSL4E14F031N]; 127-8326
0₫
Mã kho: 1278326
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa |
| Series | XUSL4E |
| Beam Resolution | 14mm |
| Component Type | Receiver, Transmitter |
| Safety Type | 4 |
| SIL IEC 61508 | 3 |
| PL EN ISO 13849-1 | E |
| Number of Beams | 30 |
| Protective Height | 310mm |
| Minimum Scanning Distance | 0 m, 1 m |
| Maximum Scanning Distance | 3 m, 6 m |
| Maximum Response Time | 5.5 ms |
| Supply Voltage | 24 V dc |
| Application | Finger |
| Dimensions | 31 x 29.4 x 363 mm |
| Features | Automatic/Manual Restart, Multi-Colour LEDs, 2 PNP Output |
| Length | 31mm |
| Width | 29.4mm |
| Terminal Type | 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) |
| Height | 363mm |
