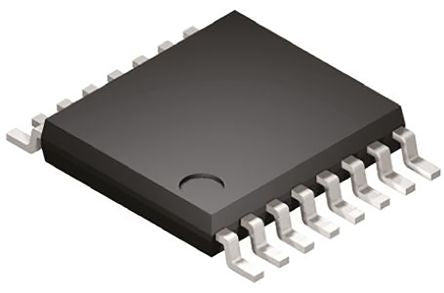

ON Semiconductor MC14504BDTG, Logic Level Translator, Level Shifter, CMOS, TTL to CMOS, CMOS, TTL, 16-Pin TSSOP [MC14504BDTG]; 163-0541
0₫
Mã kho: 1630541
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Logic Family | CMOS |
Logic Function | Level Shifter |
Translation | CMOS, TTL to CMOS |
Maximum High Level Output Current | -2.4mA |
Maximum Low Level Output Current | 2.4mA |
Output Type | CMOS, TTL |
Maximum Propagation Delay Time @ Maximum CL | 550 ns @ 50 pF |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Pin Count | 16 |
Dimensions | 5.1 x 4.5 x 1.05mm |
Height | 1.05mm |
Length | 5.1mm |
Maximum Operating Supply Voltage | 18 V |
Maximum Operating Temperature | +125 °C |
Width | 4.5mm |
Minimum Operating Supply Voltage | 3 V |
Propagation Delay Test Condition | 50pF |
Minimum Operating Temperature | -55 °C |
