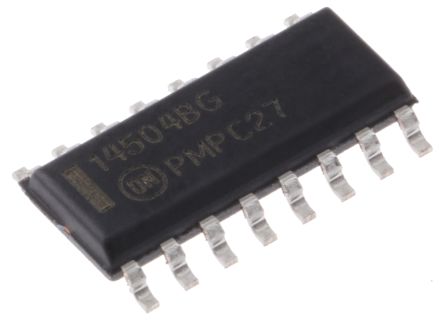

ON Semiconductor MC14504BDR2G, Logic Level Translator, CMOS, TTL to CMOS, CMOS, -0.5 → 18 V, 16-Pin SOIC [MC14504BDR2G]; 773-7746
0₫
Mã kho: 7737746
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | CMOS, TTL |
| Logic Function | Level Translator |
| Translation | CMOS, TTL to CMOS |
| Maximum High Level Output Current | -8.8mA |
| Maximum Low Level Output Current | 8.8mA |
| Output Type | CMOS |
| Maximum Propagation Delay Time @ Maximum CL | 370 ns@ 50 pF |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Dimensions | 19.55 x 6.85 x 3.43mm |
| Height | 3.43mm |
| Length | 19.55mm |
| Maximum Operating Supply Voltage | +18 V dc |
| Width | 6.85mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Minimum Operating Supply Voltage | -0.5 V dc |
