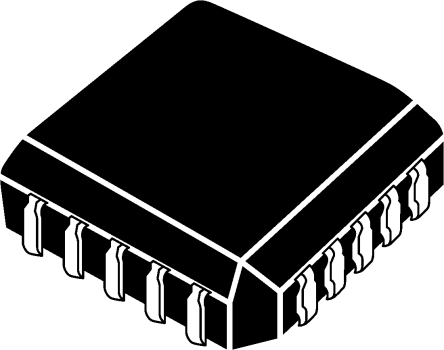

ON Semiconductor MC10H124FNG, Logic Level Translator, TTL to MECL, MECL, 20-Pin PLCC [MC10H124FNG]; 162-9387
0₫
Mã kho: 1629387
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74 |
| Logic Function | Translator |
| Translation | TTL to MECL |
| Maximum High Level Output Current | 18mA |
| Maximum Low Level Output Current | 25mA |
| Output Type | MECL |
| Maximum Propagation Delay Time @ Maximum CL | 3.1ns |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Pin Count | 20 |
| Dimensions | 8.89 x 8.89 x 4.2mm |
| Height | 4.2mm |
| Length | 8.89mm |
| Maximum Operating Supply Voltage | 7 V dc |
| Minimum Operating Supply Voltage | 0 V dc |
| Width | 8.89mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +75 °C |
