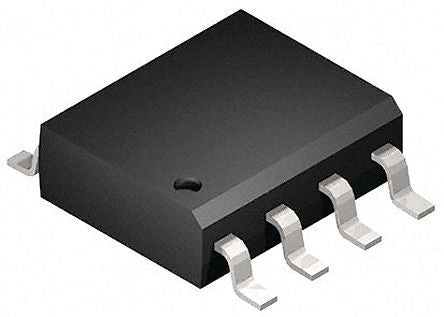

ON Semiconductor MC100EPT21DG, Logic Level Translator, LVPECL/LVDS/CML to LVTTL/LVCMOS, LVCMOS, LVTTL, 3 → 3.6 V [MC100EPT21DG]; 806-2643
0₫
Mã kho: 8062643
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | ECL |
| Logic Function | Translator |
| Translation | LVPECL/LVDS/CML to LVTTL/LVCMOS |
| Maximum High Level Output Current | -3mA |
| Maximum Low Level Output Current | 24mA |
| Output Type | LVCMOS, LVTTL |
| Maximum Propagation Delay Time @ Maximum CL | 2950ps |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Dimensions | 5 x 4 x 1.5mm |
| Height | 1.5mm |
| Length | 5mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 4mm |
| Minimum Operating Supply Voltage | 3 V |
