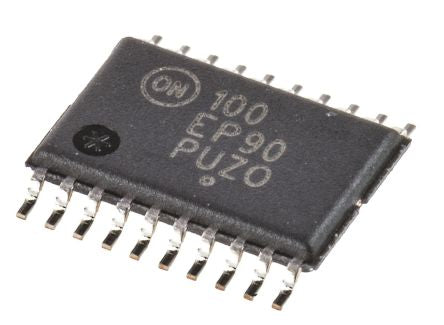

ON Semiconductor MC100EP90DTG, Logic Level Translator, ECL, LVECL to LVPECL, PECL, 20-Pin TSSOP [MC100EP90DTG]; 163-2451
0₫
Mã kho: 1632451
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | ECL |
| Logic Function | Translator |
| Translation | ECL, LVECL to LVPECL, PECL |
| Maximum High Level Output Current | -50mA |
| Maximum Low Level Output Current | 50mA |
| Maximum Propagation Delay Time @ Maximum CL | -5.5 V ns @ 5.5 V, 0.34 ns @ -3 V |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 20 |
| Dimensions | 6.6 x 4.5 x 1.05mm |
| Height | 1.05mm |
| Length | 6.6mm |
| Maximum Operating Supply Voltage | ±5.5 V |
| Width | 4.5mm |
| Minimum Operating Supply Voltage | ±3 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
