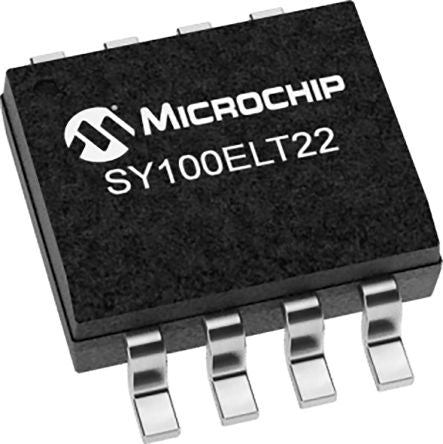

Microchip Technology SY100ELT22LZG, Logic Level Translator, 8-Pin SOIC [SY100ELT22LZG]; 177-9831
by Microchip
0₫
Mã kho: 1779831
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | PECL |
| Logic Function | Translator |
| Maximum High Level Output Current | 50 (Continuous) mA, 100 (Surge) mA |
| Maximum Propagation Delay Time @ Maximum CL | 600ps |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Dimensions | 4.93 x 3.94 x 1.48mm |
| Height | 1.48mm |
| Length | 4.93mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 4.2 V |
| Maximum Operating Temperature | +85 °C |
| Width | 3.94mm |
| Minimum Operating Temperature | -40 °C |
