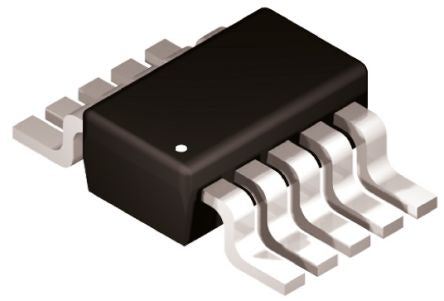

Maxim MAX9376EUB+, Logic Level Translator, LVDS to LVPECL, LVPECL to LVDS, LVPECL, 3 → 3.6 V, 10-Pin μMAX [MAX9376EUB+]; 798-5185
0₫
Mã kho: 7985185
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Logic Family | LVDS, LVPECL |
Logic Function | Translator |
Translation | LVDS to LVPECL, LVPECL to LVDS |
Output Type | LVPECL |
Maximum Propagation Delay Time @ Maximum CL | 600ps |
Mounting Type | Surface Mount |
Package Type | μMAX |
Pin Count | 10 |
Dimensions | 3 x 3.05 x 0.95mm |
Height | 0.95mm |
Length | 3mm |
Maximum Operating Supply Voltage | 3.6 V |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Width | 3.05mm |
Minimum Operating Supply Voltage | 3 V |
