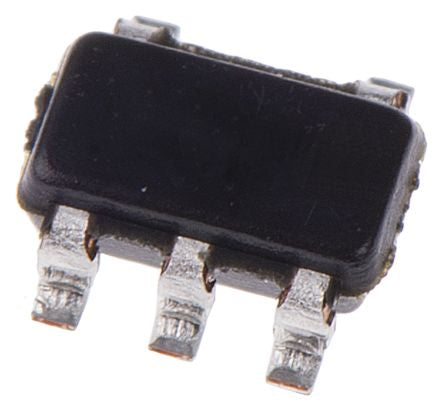

Texas Instruments SN74LVC1G00DBVT, 2-Input NAND Logic Gate, 5-Pin SOT-23 [SN74LVC1G00DBVT]; 145-7571
0₫
Mã kho: 1457571
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Logic Family | LVC |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 4 ns @ 5 V, 4.7 ns @ 3.3 V |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Width | 1.6mm |
| Dimensions | 2.9 x 1.6 x 1.15mm |
| Length | 2.9mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 1.15mm |
