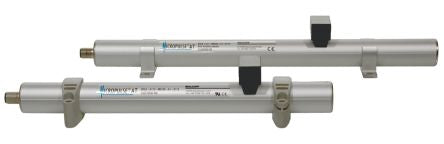

BALLUFF Linear Transducer 300mm stroke 0 → 10 V, Maximum of 5 mA output range 20 → 28 V dc IP67 [BTL6-A110-M0300-A1-S115]; 837-1965
by BALLUFF
0₫
Mã kho: 8371965
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Stroke | 300mm |
| Input Current Range | Maximum of 70 mA |
| Supply Voltage | 20 → 28 V dc |
| Housing Material | Anodised Aluminium |
| IP Rating | IP67 |
| Output Range | 0 → 10 V, Maximum of 5 mA |
| Overall Height | 37mm |
| Overall Width | 60mm |
| Overall Depth | 446mm |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +70°C |
